The AR-V6100FL fanless thermal design provides the high reliability in vehicle applications. The AR-V6100FL utilize advanced heat pipe, heat sink, thermal pad to solve the problem of heat generated by CPU, Chipset, DRAM and power devices. This is a big challenge for designing a Fanless Computer which supports 45 Watts Quad Core Core i7 processor. All components used in AR-V6100FL are industrial proven and only solid state capacitors are utilized for high MTBF.
In vehicle computer ,single board computer ,Industrial PC
acrosser also integrated two new useful features to the AR-V6100FL. The one-wire (i-Button) interface provides system integrators a low cost solution for driver ID, temperature and humidity sensors. The combo connector combines VGA, audio, USB and DC 12V power output all in one connector so significantly simplify the harness between the computer and Accrosser’s in vehicle touch monitors.

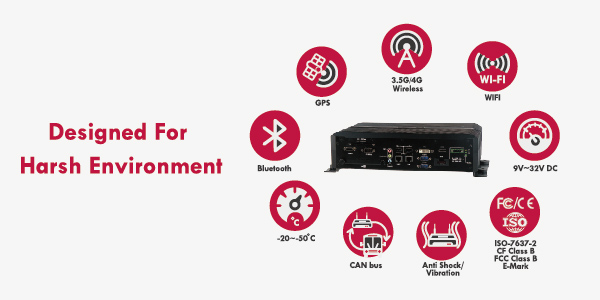

1. Intel Celeron, Core i5 up to i7 Quad-core Processor
2. One CAN 2.0A/2.0B Interface
3. 1-Wire i-Button interface for Driver ID and Sensors
4. 4x Digital Inputs and 4 Digital Outputs
5. VGA/HDMI/DVI Dual Independent Video Outputs
6. External Removable Anti-Vibration/Shock Disk Bay and CF socket
7. Internal 3.5G, GPS, WiFi, Blue Tooth Modules (Optional)
8. Combo connector to simplify touch monitor installation
